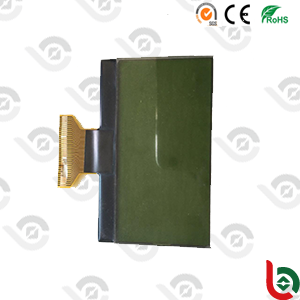

Stn 7segment Monochrome LCD

Display Format

132*64DOTS

Supply Voltage For Logic

3.0V

Display Type

STN-Y/G, POSITIVE ,REFLECTIVE

Viewing Direction

6.00 O’ CLOCK

Lcd Driving Method

1/65 DUTY, 1/9 BIAS, 9.2V (J6392)the last sample：2017-5-23

Connection

COG+FPC

Lcd Driver Ic

ST7565R

Inspection Standard Of Lcd

A STANDARD

Inspection Standard Of Rohs

RoHS COMPLIANCE

Supply Voltage

VDD

-0.3

3.6

V

VOUT

-0.3

13.5

V

Operating Temperature

Topr

-20

70

℃

Storage Temperature

Tstr

-30

80

℃

Supply Voltage

Logic

VDD

VDD-VSS

2.9

3.0

3.1

V

LCD

VLCD

Ta=25℃

9.0

9.2

9.4

V

Input Voltage

H level

VIH

-

0.8*VDD

-

VDD

V

L level

VIL

VSS

-

0.2*VDD

Current Consumption
(LCD Drive )

IDD

--

2.0

mA
