Technical Parameters and considerations
| OPERATING VOLTAGE:3.3V | OPERATING CURRENT:2.0mA MAX(EXCEPT B/L) |
| DISPLAY TYPE:FFSTN,NEGATIVE | POLARIZER MODE:TRANSFLECTIVE |
| LCD DRIVE METHOD:I/160DUTY I/14BIAS 16.0V | VIEW DIRECTION:12:00 0'CLOCK |
| LCD CONTROLLER:ST75161 | BACK LIGHT:WHITE,SIDE LIGHT,3.3V |
| OPERATING TEMPERATURE:-20℃ TO 70℃ | STORAGE TEMPERATURE:-30℃ TO 80℃ |
| DEFAULT TOLERANCE:±0.3 | ROHS STANDARD:YES |
Absolute Maximum Ratings
|
Item |
Symbol |
MIN |
Max |
Unit |
|
Supply Voltage |
VDD |
-0.3 |
3.6 |
V |
|
VLCD |
-0.3 |
13.5 |
V |
|
|
Operating Temperature |
Topr |
-20 |
70 |
℃ |
|
Storage Temperature |
Tstr |
-30 |
80 |
℃ |

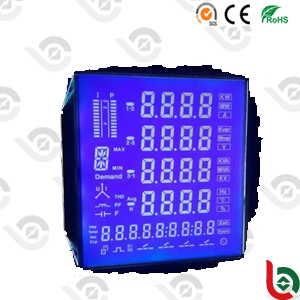

Display Image
