It can be used in small-size products with a range of less than 3 inches, and can only display black and white monochrome and do some simple text and digital display. It is mainly used in consumer electronic products such as electronic watches, calculators, and simple handheld game consoles.
LCD display with monochrome backlight for digital display, rice cooker, air conditioner, counter and so on.
You need other sizes and fields, etc. Please contact us and we will provide you with detailed parameters.
General Specification
|
Display Format |
TN |
|
Power Supply |
3.0V |
|
Display Type |
TN, POSITIVE ,REFLECTVE |
|
Viewing Direction |
12．00 O’clock |
|
LCD Driving Method |
1/4 Duty, 1/3 Bias, 3V |
|
Driver IC |
NO |
|
Input Data |
Parallel 6800 Series MPU Interface / Parallel 8080 Series MPU Interface / Serial 4-Line SPI Interface |
|
Module Size(W*H*T) |
132 *58(MAX)mm |
|
Viewing Area (W*H) |
128*50mm |
Absolute Maximum Ratings
|
Item |
Symbol |
MIN |
Max |
Unit |
|
Supply Voltage |
VDD |
-0.3 |
3.6 |
V |
|
VLCD |
-0.3 |
13.5 |
V |
|
|
Operating Temperature |
Topr |
-20 |
70 |
℃ |
|
Storage Temperature |
Tstr |
-30 |
80 |
℃ |

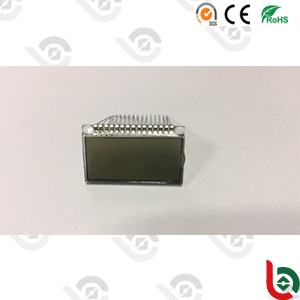

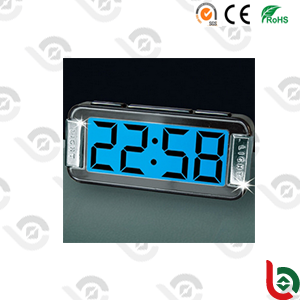

Display Image
