TFT LCD Display Module

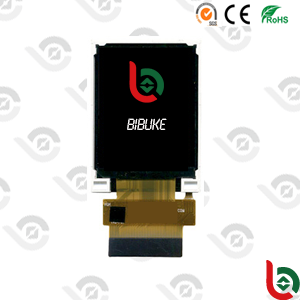

  • 1.8 Inch Resolution TFT LCD Display
1.8 Inch Resolution TFT LCD Display

1.8 Inch Resolution TFT LCD Display

  • Module Size (w x h) 34 x 46.7 mm
  • Display Resolution 128 (RGB) x 160
  • Pixel Size 0.219 x 0.219 mm
  • Viewing Angle 6:00 o'clock
  • Product description: 1.8 Inch Resolution TFT LCD Display
  • INQUIRY

Diagonal Screen Size 1.8 inch
Display Resolution 128 (RGB) x 160
Viewing Angle 6 o'clock
Interface Type MCU parallel, RGB, 3-Wire SPI
Brightness 280 cd/m2
LCD Driver IC Ilitek ILI9163C
Module Size (w x h) 34 x 46.7 mm
Active Area (w x h) 28.03 x 35.04 mm
Pixel Size 0.219 x 0.219 mm
Operating Temperature -20 ~ 70°C

Bibuke is a global leading Manufacturer of TFT LCD display based in Taiwan and China.  Bibuke offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 2.4" TFT LCD, 2.8" TFT LCD, 3.2" TFT LCD, 3.5" TFT Display, 4.3 inch TFT LCD, 5 TFT LCD, 5.6 TFT LCD, 5.7 inch Display,  7 " TFT LCD, 8" TFT, 9" TFT, 10.1" TFT LCD, 10.2" TFT LCD, 12.1" TFT LCD , 12.3" TFT LCD (diagonal size of the active area) and so on .  There are more than 200 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.

Bibuke TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD, Bibuke Clever System TFT and Touch screen display.  These displays include landscape or portrait modes.  Bibuke has Mono TFT displays and full color TFTs in line, these displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology.  Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS, MIPI DSI and HDMI.  Bibuke TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.
