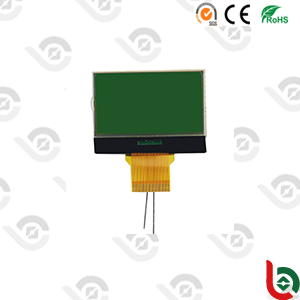

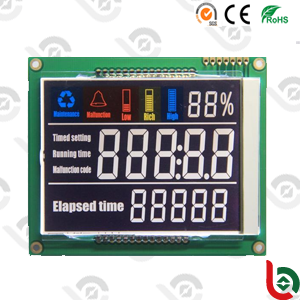

Character LCD Display Module Acm

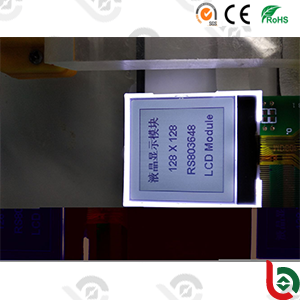

  • DISPLAY FORMAT 128*128DOTS
  • SUPPLY VOLTAGE FOR LOGIC 3.0 V
  • VIEWING DIRECTION 12 O’ CLOCK
  • CONNECTION COG+FPC
  • Product description: Character LCD Display Module Acm
  • INQUIRY

(1) Display format: 240 128 dot-matrix; 1/ 128 duty.
(2) Construction: STN/FSTN LCD, Bezel, Zebra ,PCB.
(3) Optional LED / EL / CCFL back-light.
(4) Built in controller T6963C or EQU.

The character LCD is a dot matrix liquid crystal module specifically for displaying letters, numbers, symbols, and the like. Character LCD,

General Specification

Features

(1) Display format: 240 128 dot-matrix; 1/ 128 duty.

(2) Construction: STN/FSTN LCD, Bezel, Zebra ,PCB.

(3) Optional LED / EL / CCFL back-light.

(4) Built in controller T6963C or EQU.

(5) 5V single power input. Built-in DC/DC converter for LCD driving.

(6) Normal / Extended temperature type.


Mechanical Data

Parameter

Standard Value

Unit

Dot Size

0.40 (W) ´ 0.40(H)

mm

Dot Pitch

0.45(W) ´ 0.45(H)

mm

Viewing Area

114.0(W) ´ 64.0(H)

mm

Module Size (LED/CCFL Back-Light)

144.0(W) ´ 104.0(H) ´ 13.7 max (T)

mm


Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Logic Circuit Supply Voltage

VDD-VSS

0

7.0

V

LCD Driving Voltage

VDD-VO

0

26

V

Input Voltage

VI

VSS

VDD

V

Normal Temp. Type

Operating Temp.

TOP

0

50

°C

Storage Temp.

TSTG

-20

70

°C

Extended Temp. Type

Operating Temp.

TOP

-20

70

°C

Storage Temp.

TSTG

-30

80

°C

240*128 size drawings

1


Display Image,Please send email to LCDs of other sizes.

3

Brief description of the LCD character module

The LCD character module is a simple display device in terms of characteristics, and is known for its low power consumption and long-term reliability. They are designed to display alphanumeric characters in a preset mode and do not have the flexibility that one thinks LCDs are required for a computer or television display. In most cases, the module is a small display that displays only 8 or 16 or 32 characters for status reporting and low-level communication.

In many LCD modules, there is no backlight, which means the module is operating in reflection mode. This means that ambient light is required to view the displayed characters by using the reflective elements behind the liquid crystal components. On the other hand, the module operates as a backlit LCD, and a polarized photoresist crystal structure is realized by applying a voltage.

LCD modules are commonly found in calculators and other electronic devices, and the proper operation of these devices requires some visual communication. Other examples are printers, microwaves, pagers, and electronic watches. Because of its low cost, high efficiency, and ease of operation, this form of display is also very popular among electronics enthusiasts.



Bibuke offers a wide range of standard Character LCD modules for customers' application. Our LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.

To meet the demands of customer applications, these character LCD displays are available with viewing angles of 6:00, 12:00, 3:00, and 9:00 o'clock. Bibuke offers various IC options of character fonts including English/Japanese, western European, eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. These LCD character module and LCM Modules can be used on industrial and consumer's applications including entrance guard's equipment, telegram, medical device, car and home audio, white goods, game machine, toys and etc.

Model

Content
 (W X H)

Module size
 W x H(mm)

View area
 W x H(mm)

Dot size
 W x H(mm)

Dot pitch
 W x H(mm)

Driving Method

Controller LSI  or Equiv

IC
 Package

STN-TYPE

FSTN-TYPE

8D -C2004A

20X4

98.0X60.0

76.0X25.2

0.55X0.55

2.95X4.75

1/16

S6A0069

COB

Y

Y

8D -C2004B

20X4

77.0X47.0

60.0X22.0

0.42X0.46

2.3X4.03

1/16

S6A0070

COB

Y

Y

8D -C2004C

20X4

146.0X62.5

123.5X43.0

0.92X1.1

4.84X9.22

1/16

S6A0069

COB

Y

Y

8D -C2402A

24X2

118.0X36.0

93.5X16.0

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D -C2402B

24X2

208.0X40.0

178.0X23.0

1.16X1.16

6.0X9.63

1/16

S6A0069

COB

Y

Y

8D -C4001A

40X1

182.0X33.5

154.4X16.5

0.6X0.75

3.2X6.35

1/16

S6A0069

COB

Y

Y

8D -C4002B

40X2

182.0X33.5

154.4X16.5

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D C4004A

40X4

190.0X54.0

147.0X29.5

0.5X0.55

2.78X4.89

1/16

S6A0069

COB

Y

Y

8D -G12232A

122X32

84.0X44.0

60.0X18.5

0.4X0.4

0.44X0.44

1/32

SED1520

COB

Y

Y

8D -G12232B

122X32

80.0X36.0

55.0X18.5

0.36X0.41

0.4X0.45

1/32

SED1520

COB

Y

Y

8D -G12232C

122X32

98.0X60.0

76.0X25.2

0.53X0.61

0.57X0.65

1/32

SED1520

COB

Y

Y

8D -G12232D

122X32

80.2X47.4

76.0X25.2

0.53X0.61

0.57X0.65

1/32

SED1520

COB

Y

Y

8D -G12864A

128X64

78.0X70.0

62.0X44.0

0.39X0.55

0.44X0.6

1/64

S6B0108A

COB

Y

Y

8D -G12864B

128X64

105.0X60.5

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864C

128X64

93.0X70.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864D

128X64

113.0X65.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864E

128X64

93.0X70.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

ST7920

COB

Y

Y

8D -G19264A

192X64

130X65.0

104.0X39.0

0.46X0.46

0.51X0.51

1/64

S6B0108A

COB

Y

Y

8D -G19264B

192X64

120X62.0

104.0X39.0

0.46X0.46

0.51X0.51

1/64

S6B0108A

COB

Y

Y

8D -G24064B

240X64

180.0X65.0

132.0X39.0

0.53X0.53

0.49X0.49

1/64

T6963C

QFP/COB

Y

Y

8D -G240128A

240X128

144X104

114X64

0.4X0.4

0.45X045

1/128

T6963C

QFP/COB

Y

Y
