图形点阵模块

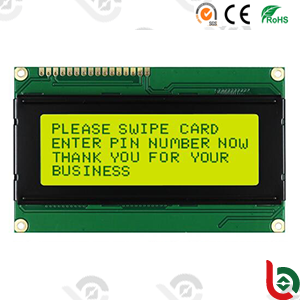

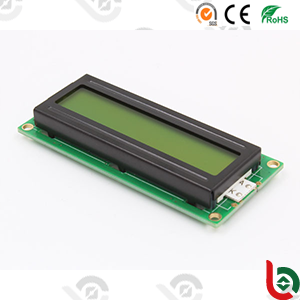

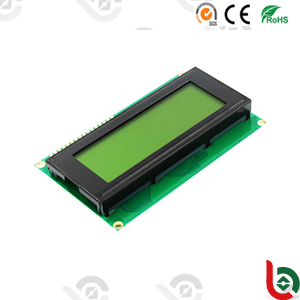

黄色图形液晶显示器

Display format: 160 128 dot-matrix; 1/ 128 duty.
Construction: LCD, Bezel, Zebra and PCB.
Optional Edge LED or EL back-light.
Controller: T6963C.
产品描述：Graphic LCD Yellow Display，黄色图形液晶显示器
在线订购

General Specification

Production Capacity:	5000PCS/Month	Payment Terms:	L/C, T/T, Western Union, Paypal	Type:	LCM
Digital LCD Module Type:	Counting Module	Touch Screen Type:	Surface Acoustic Wave	Response Time:	3ms

Mechanical Data

Parameter	Standard Value	Unit
Dot Size	0.54 (W) ´ 0.54(H)	mm
Dot Pitch	0.58(W) ´ 0.58(H)	mm
Viewing Area	101.0(W) ´ 82.2(H)	mm
Module Size (W/ LED Back-Light)	129.0(W) ´ 102.0(H) ´ 18.0 max (T)	mm

Absolute Maximum Ratings

Parameter		Symbol	Min	Max	Unit
Logic Circuit Supply Voltage		VDD-VSS	-0.3	5.0	V
LCD Driving Voltage		VDD-VO	-0.3	16.0	V
Input Voltage		VI	-0.3	VDD+0.3	V
Normal Temp. Type	Operating Temp.	TOP	0	50	°C
Normal Temp. Type	Storage Temp.	TSTG	-10	60	°C
Extended Temp. Type	Operating Temp.	TOP	-20	70	°C
Extended Temp. Type	Storage Temp.	TSTG	-30	80	°C

Outline Dimension

Bibuke COG LCD modules (Chip-on-Glass LCD Module) monochrome display provides graphic type in resolution of 128x64 to 320x240 and COG LCD character types including size of 16x2, 20x2, 20x4, 24x2 formats with 5x8 dot matrix.

The COG package offers high quality with the benefits of light weight, and low power consumption. Also, it is available to add a connection board for each item to change the interface from FPC to pins or cables. We can offer a variety of pin out connections to suit your requirements. The COG LCM technology is very suitable for the applications that demand more compact package displays.

Model	Content (W X H)	Module size W x H(mm)	View area W x H(mm)	Dot size W x H(mm)	Dot pitch W x H(mm)	Driving Method	Controller LSI or Equiv	IC Package	STN-TYPE	FSTN-TYPE
8D -C2004A	20X4	98.0X60.0	76.0X25.2	0.55X0.55	2.95X4.75	1/16	S6A0069	COB	Y	Y
8D -C2004B	20X4	77.0X47.0	60.0X22.0	0.42X0.46	2.3X4.03	1/16	S6A0070	COB	Y	Y
8D -C2004C	20X4	146.0X62.5	123.5X43.0	0.92X1.1	4.84X9.22	1/16	S6A0069	COB	Y	Y
8D -C2402A	24X2	118.0X36.0	93.5X16.0	0.6X0.65	3.2X5.55	1/16	S6A0069	COB	Y	Y
8D -C2402B	24X2	208.0X40.0	178.0X23.0	1.16X1.16	6.0X9.63	1/16	S6A0069	COB	Y	Y
8D -C4001A	40X1	182.0X33.5	154.4X16.5	0.6X0.75	3.2X6.35	1/16	S6A0069	COB	Y	Y
8D -C4002B	40X2	182.0X33.5	154.4X16.5	0.6X0.65	3.2X5.55	1/16	S6A0069	COB	Y	Y
8D C4004A	40X4	190.0X54.0	147.0X29.5	0.5X0.55	2.78X4.89	1/16	S6A0069	COB	Y	Y
8D -G12232A	122X32	84.0X44.0	60.0X18.5	0.4X0.4	0.44X0.44	1/32	SED1520	COB	Y	Y
8D -G12232B	122X32	80.0X36.0	55.0X18.5	0.36X0.41	0.4X0.45	1/32	SED1520	COB	Y	Y
8D -G12232C	122X32	98.0X60.0	76.0X25.2	0.53X0.61	0.57X0.65	1/32	SED1520	COB	Y	Y
8D -G12232D	122X32	80.2X47.4	76.0X25.2	0.53X0.61	0.57X0.65	1/32	SED1520	COB	Y	Y
8D -G12864A	128X64	78.0X70.0	62.0X44.0	0.39X0.55	0.44X0.6	1/64	S6B0108A	COB	Y	Y
8D -G12864B	128X64	105.0X60.5	72.0X40.0	0.48X0.48	0.52X0.52	1/64	S6B0108A	COB	Y	Y
8D -G12864C	128X64	93.0X70.0	72.0X40.0	0.48X0.48	0.52X0.52	1/64	S6B0108A	COB	Y	Y
8D -G12864D	128X64	113.0X65.0	72.0X40.0	0.48X0.48	0.52X0.52	1/64	S6B0108A	COB	Y	Y
8D -G12864E	128X64	93.0X70.0	72.0X40.0	0.48X0.48	0.52X0.52	1/64	ST7920	COB	Y	Y
8D -G19264A	192X64	130X65.0	104.0X39.0	0.46X0.46	0.51X0.51	1/64	S6B0108A	COB	Y	Y
8D -G19264B	192X64	120X62.0	104.0X39.0	0.46X0.46	0.51X0.51	1/64	S6B0108A	COB	Y	Y
8D -G24064B	240X64	180.0X65.0	132.0X39.0	0.53X0.53	0.49X0.49	1/64	T6963C	QFP/COB	Y	Y
8D -G240128A	240X128	144X104	114X64	0.4X0.4	0.45X045	1/128	T6963C	QFP/COB	Y	Y
