字符点阵模块

  • 128X64 DOTS MATRIX LCD Module
  • 128X64 DOTS MATRIX LCD Module
128X64 DOTS MATRIX LCD Module128X64 DOTS MATRIX LCD Module

128X64 DOTS MATRIX LCD Module

  • Display Format 128X64 DOTS MATRIX
  • Input Data parallel
  • Viewing Direction 6 O’clock
  • Driver ST7565R
  • 产品描述:128X64 DOTS MATRIX LCD Module
  • 在线订购

Display     Mode Transflective
STN,GREEN,Negative,transmissive
Display    Format 128X64 DOTS MATRIX
Input      Data parallel
Multiplexing  Ration 1/65Duty ,  1/9Bias
Viewing  Direction 6 O’clock
Driver ST7565R
Interface Type Parallel interface,8080 series
BACKLIGHT White LED

Item Specifications Unit
Module Size(W*H*T) 93.7X53.0X5.50 mm
Viewing Area (W*H) 70.7X38.8 mm
Dot Pitch (W*H) 0.52X0.52 mm
Dot Size (W*H) 0.48X0.48 mm
Active Area (W*H) 66.52X33.24 mm
Number of Dots 128X64 ---

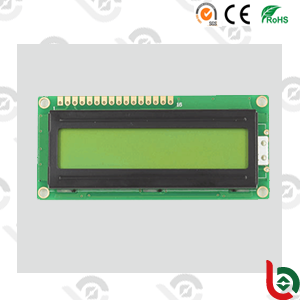

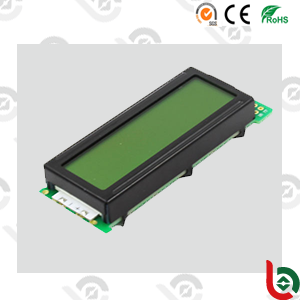

Bibuke offers a wide range of standard Character LCD modules for customers' application. Our LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.

To meet the demands of customer applications, these character LCD displays are available with viewing angles of 6:00, 12:00, 3:00, and 9:00 o'clock. Bibuke offers various IC options of character fonts including English/Japanese, western European, eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. These LCD character module and LCM Modules can be used on industrial and consumer's applications including entrance guard's equipment, telegram, medical device, car and home audio, white goods, game machine, toys and etc.

Model

Content
(W X H)

Module size
W x H(mm)

View area
W x H(mm)

Dot size
W x H(mm)

Dot pitch
W x H(mm)

Driving Method

Controller LSI  or Equiv

IC
Package

STN-TYPE

FSTN-TYPE

8D -C2004A

20X4

98.0X60.0

76.0X25.2

0.55X0.55

2.95X4.75

1/16

S6A0069

COB

Y

Y

8D -C2004B

20X4

77.0X47.0

60.0X22.0

0.42X0.46

2.3X4.03

1/16

S6A0070

COB

Y

Y

8D -C2004C

20X4

146.0X62.5

123.5X43.0

0.92X1.1

4.84X9.22

1/16

S6A0069

COB

Y

Y

8D -C2402A

24X2

118.0X36.0

93.5X16.0

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D -C2402B

24X2

208.0X40.0

178.0X23.0

1.16X1.16

6.0X9.63

1/16

S6A0069

COB

Y

Y

8D -C4001A

40X1

182.0X33.5

154.4X16.5

0.6X0.75

3.2X6.35

1/16

S6A0069

COB

Y

Y

8D -C4002B

40X2

182.0X33.5

154.4X16.5

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D C4004A

40X4

190.0X54.0

147.0X29.5

0.5X0.55

2.78X4.89

1/16

S6A0069

COB

Y

Y

8D -G12232A

122X32

84.0X44.0

60.0X18.5

0.4X0.4

0.44X0.44

1/32

SED1520

COB

Y

Y

8D -G12232B

122X32

80.0X36.0

55.0X18.5

0.36X0.41

0.4X0.45

1/32

SED1520

COB

Y

Y

8D -G12232C

122X32

98.0X60.0

76.0X25.2

0.53X0.61

0.57X0.65

1/32

SED1520

COB

Y

Y

8D -G12232D

122X32

80.2X47.4

76.0X25.2

0.53X0.61

0.57X0.65

1/32

SED1520

COB

Y

Y

8D -G12864A

128X64

78.0X70.0

62.0X44.0

0.39X0.55

0.44X0.6

1/64

S6B0108A

COB

Y

Y

8D -G12864B

128X64

105.0X60.5

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864C

128X64

93.0X70.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864D

128X64

113.0X65.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864E

128X64

93.0X70.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

ST7920

COB

Y

Y

8D -G19264A

192X64

130X65.0

104.0X39.0

0.46X0.46

0.51X0.51

1/64

S6B0108A

COB

Y

Y

8D -G19264B

192X64

120X62.0

104.0X39.0

0.46X0.46

0.51X0.51

1/64

S6B0108A

COB

Y

Y

8D -G24064B

240X64

180.0X65.0

132.0X39.0

0.53X0.53

0.49X0.49

1/64

T6963C

QFP/COB

Y

Y

8D -G240128A

240X128

144X104

114X64

0.4X0.4

0.45X045

1/128

T6963C

QFP/COB

Y

Y
