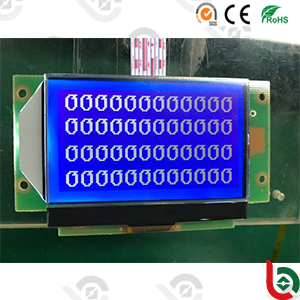

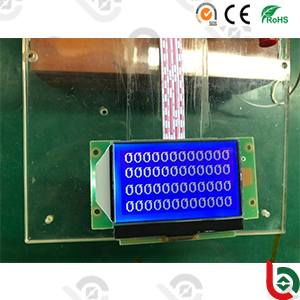

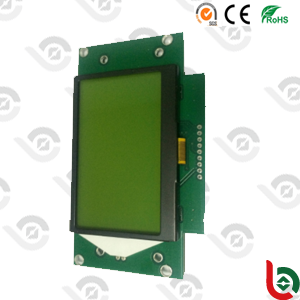

空调监控面板HTN-LCD液晶屏

Panel HTN LCD Panel for Air Conditioner Monitor Product raw materials

HTN film LCD screen,

Chinese name: HTN .foreign name: (HighTwistedNematic)

Interpretation: Highly twisted nematic

feature:

High contrast, low power consumption, low drive voltage

Nematic liquid crystal

The molecules are sandwiched between two transparent glass.

Between the two layers of glass, the orientation of the liquid crystal molecules is deflected by 110 to 130 degrees. The characteristic of this type of LCD is that the dynamic driving performance is not good enough, but the viewing angle is wider than that of the TN type.

Used indoors, outdoors, surveillance, large screen projects. Audio Products Medical Equipment Industrial Products (Water Meters, Electronic Instruments, Equipment) Auto Sports Equipment Watch Household Appliances (Air Conditioning / Washing Machine / Electronic Cooler / Refrigerator / Disinfection Cabinet / Dishwasher / Calculator / Electronic Scale, etc.)

General Specification

Display Type: HTN .

Display Mode Positive . Polarizer Mode: Transflective.

Driving Method Vop 3.0 Duty 1/4Bias 1/3 . Viewing Direction: 12 o’clock .

Display Color: Display Pixel: Black .(On Stage, Pixel Color)

Back Ground: gray .(Off stage,Display Color)

Mechanical Specification

Absolute Maximum Ratings

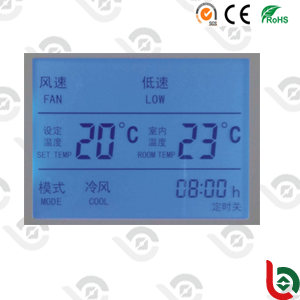

Display Image
